Hertz

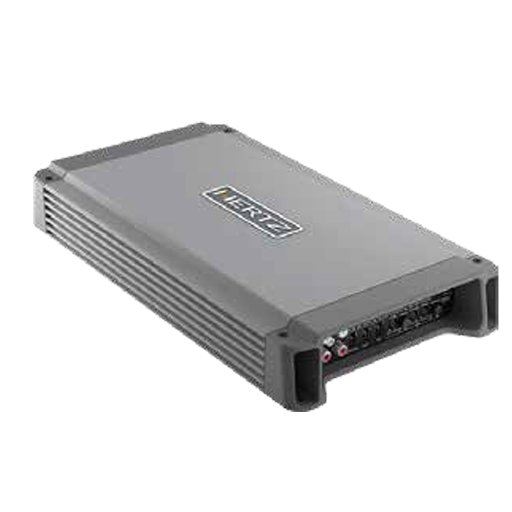

Hertz HCP 5MD
TECHNICAL SPEC
| Component | MARINE 5 CH AMPLIFIER |
| Channels | 5 – 3 |
| Total Power RMS | 1500 W |
| Distorsion – TliD (100 Hz @ 4Ω) | 0.02 % |
| Load impedance (MIN)
@5Ch / @3Ch |
2 Ω / 4 Ω + 4 Ω + 2 Ω |
| Max size (mm/inches) | 345 x 190 x 50 / 13.58 x 7.48 x 1.97 |
OUTPUT POWER
Output Power (RMS) @ 14.4 VDC, THD 1%
| 4 Ch: | 120 W x 4 (4 Ω) |
| 4 Ch: | 220 W x 4 (2 Ω) |
| 3 Ch: | 120 W x 2 (4 Ω) + 440 W x 1 (4 Ω) |
| 3 Ch: | 220 W x 2 (4 Ω) + 440 W x 1 (4 Ω) |
| 2 Ch: | 440 W x 2 (4 Ω) |
Output Power (RMS) @ 14.4 VDC, THD 10%
| 4 Ch: | 150 W x 4 (4 Ω) |
| 4 Ch: | 250 W x 4 (2 Ω) |
| 3 Ch: | 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω) |
| 3 Ch: | 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω) |
| 2 Ch: | 520 W x 2 (4 Ω) |
Total Power RMS 2000 W
